- 型号：

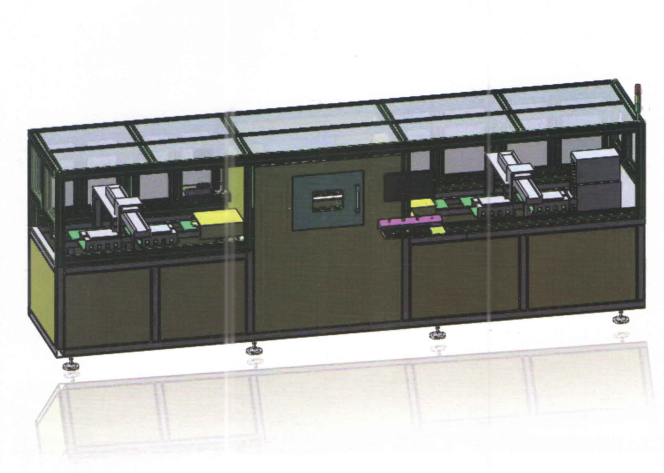

- 品名：动力卷绕电池X-Ray在线检查机
技术参数iechnical parameter
光管电压:110kV、130 kV
Tube voltage :110kV、130 kV
光管电流:0.15mA、0.2mA
Tube current :0.15mA.0.2m/
光管焦点尺寸:5um、
Tube focus:5um、2um
平板探测器面积:130mmx130mm
FPD area:130mmx130mm
平板探测器像素:1536x1536
FPD pixels:1536x1536
检测效率:6PPM、12PPM
Detection efficiency:6PPM、12PPM
精度:土0.06mm
Accuracy:+0.06mm
设备尺寸:约2500mm*1500m*2600mm
Equipmentsize:about2500mm*1500m*2600mm
设备总重量:3000kg
Equipmentweight.3000kg
电源:AC110V~220V15A
Power:AC110V~220V15A
设备特点wharacterisbcs of the eoupmen!
自动上下料、扩展性强、实现无人值守作业Automatic loading and unloading,
strong scalability,and unattended
operation
高清晰度、高分辨率探测器
High definition,High resolution detector
可靠性高、故障率低、寿命长
High reliable,Low breakdown,Long life
软件简单、操作简便
Simple software and easy operation
简便的设定、软件自动检测、软件自动判定
Mouse Selection Area,Automatic
Defect Measurement
根据客户需求提供定制解决方案
Provide customized solutions to
customerneeds
辐射安全:<1uSv/h
Radiation safety:
光管电压:110kV、130 kV
Tube voltage :110kV、130 kV
光管电流:0.15mA、0.2mA
Tube current :0.15mA.0.2m/
光管焦点尺寸:5um、
Tube focus:5um、2um
平板探测器面积:130mmx130mm
FPD area:130mmx130mm
平板探测器像素:1536x1536
FPD pixels:1536x1536
检测效率:6PPM、12PPM
Detection efficiency:6PPM、12PPM
精度:土0.06mm
Accuracy:+0.06mm
设备尺寸:约2500mm*1500m*2600mm
Equipmentsize:about2500mm*1500m*2600mm
设备总重量:3000kg
Equipmentweight.3000kg
电源:AC110V~220V15A
Power:AC110V~220V15A
设备特点wharacterisbcs of the eoupmen!
自动上下料、扩展性强、实现无人值守作业Automatic loading and unloading,
strong scalability,and unattended
operation
高清晰度、高分辨率探测器
High definition,High resolution detector
可靠性高、故障率低、寿命长
High reliable,Low breakdown,Long life
软件简单、操作简便
Simple software and easy operation
简便的设定、软件自动检测、软件自动判定
Mouse Selection Area,Automatic
Defect Measurement
根据客户需求提供定制解决方案
Provide customized solutions to
customerneeds
辐射安全:<1uSv/h
Radiation safety:
