- 型号：LCM-1000

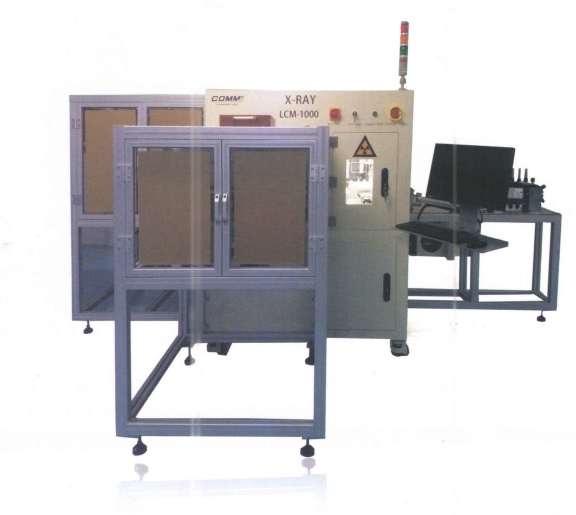

- 品名：圆柱电池X-Ray在线检查机
技术参数echnical paramete
光管电压: 90kV、110 kV
Tube voltage : 90kv、110 kV
光管电流: 0.15mA、0.2mA
Tube current :0.15mA、0.2mA
光管焦点尺寸: 5um、
Tube focus :5um、2um
平板探测器面积:130mmx130mm
FPD area:130 mmx130mm
平板探测器像素:1536x1536
FPD pixels:1536x1536
检测效率:60PPM、120PPM
Detection efficiency: 60PPM.120PPM
精度:+60um
Accuracy: ±60um
设备尺寸:约1500mm*1200m*1600mm
Equipment size :about1500mm*1200m*1600mm
设备总重量:2000kg
Equipment weight :2000kg
设备特点recter sucs ot the ecupmer
自动上下料、扩展性强、实现无人值守作业
Automaticloading and unloading,
strong scalability, and unattended
operation
高清晰度、高分辨率探测器
High definition,High resolution detector
可靠性高、故障率低、寿命长
High reliable,Low breakdown,Long life
软件简单、操作简便
Simple software and easy operation
简便的设定、软件自动检测、软件自动判定Mouse Selection Area, Automatic
Defect Measurement
根据客户需求提供定制解决方案
Provide customized solutions to
customerneeds
辐射安全:<1uSv/h
Radiation safety: < luSv/h
电源:AC110V~220V 15A
Power:AC110V~220V15A
光管电压: 90kV、110 kV
Tube voltage : 90kv、110 kV
光管电流: 0.15mA、0.2mA
Tube current :0.15mA、0.2mA
光管焦点尺寸: 5um、
Tube focus :5um、2um
平板探测器面积:130mmx130mm
FPD area:130 mmx130mm
平板探测器像素:1536x1536
FPD pixels:1536x1536
检测效率:60PPM、120PPM
Detection efficiency: 60PPM.120PPM
精度:+60um
Accuracy: ±60um
设备尺寸:约1500mm*1200m*1600mm
Equipment size :about1500mm*1200m*1600mm
设备总重量:2000kg
Equipment weight :2000kg
设备特点recter sucs ot the ecupmer
自动上下料、扩展性强、实现无人值守作业
Automaticloading and unloading,
strong scalability, and unattended
operation
高清晰度、高分辨率探测器
High definition,High resolution detector
可靠性高、故障率低、寿命长
High reliable,Low breakdown,Long life
软件简单、操作简便
Simple software and easy operation
简便的设定、软件自动检测、软件自动判定Mouse Selection Area, Automatic
Defect Measurement
根据客户需求提供定制解决方案
Provide customized solutions to
customerneeds
辐射安全:<1uSv/h
Radiation safety: < luSv/h
电源:AC110V~220V 15A
Power:AC110V~220V15A
